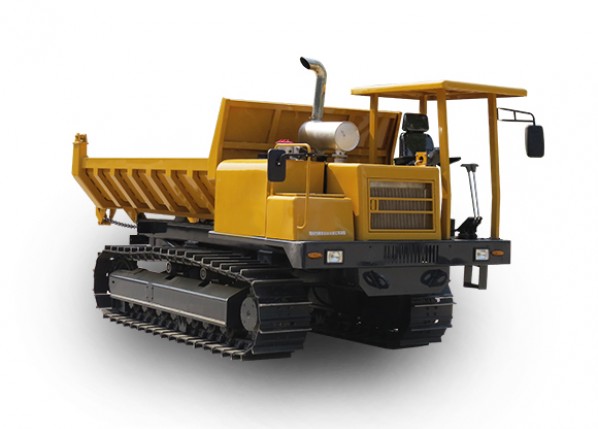

10T Steel crawler dumper
- Product Categories：Steel crawler dumper
- Browsing： Date：2018-03-22
Description
| ZY-10T Track transporter technical parameters | ||
| 1. Technical parameters | ||
| Engine model | 6BTA5.9-C240 Cummins6BTA5.9-C240 | |
| Rated power | 176kw（HP） | |
| Rated revolution | 2200r/min | |
| Working weight | 18Ton | |
| Rated carrying capacity | 10Ton | |
| Max. Walking speed | 7km/h | |
| Max. Flux | 2*180 L/min | |
| System hydraulic pressure | 31.5MPa | |
| Overall dimension(L*W*H) | 6800*2500*2800mm | |
| Width of the track shoe | 600mm | |
| product description: | 1.Engine: Adopt Cummins diesel engine, excellent performance, low fuel consumption, low noise, large power reserves, long stroke. 2.Oil tube: Choose high-pressure rubber pipe, which suits all the bad working environment, anti-quake, anti-loose, stand fire. 3.Hydraulic working system: Taking advanced of foreign advanced technology, it can reduce wobble with buffer function, and the machine service life can be extend. 4.Traveling system: South Korea Doosan motors and oil pump. 5.Structure: Choose the domestic manganese steel with excellent quality, improving the strength of structure in a high level, which guarantee the safety of traveling and construction. 6.Surface treatment: Derusting with large size shot blast machine, to change welding stress. 7.Surface spray coating: Ant rusting paint, finishing paint. |
|
